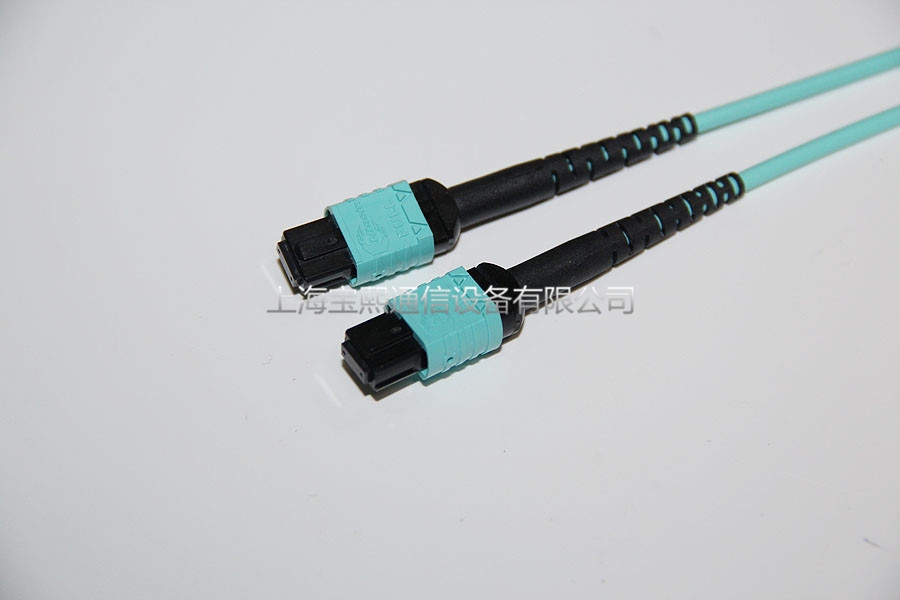

| Connector | MPO/MTP Connector | Standard SM MT
Ferrule | Low Loss(Elite)SM MT
Ferrule | Standard MM MT
Ferrule | Low Loss MM MT
Ferrule |
| Insertion loss | Insertion Loss(dB) | Typical(dB) | 0.50 | 0.20 | 0.50 | 0.20 |
| Maximun(dB) | 0.75 | 0.35 | 0.75 | 0.35 |
| Echo Loss | Return Loss(dB) | | ≥50 for APC(8 Angle Polish) | --- |
| ≥35 for PC | --- |
| Male/Female | Male/Female | | Male:With Pinside，Female:Without Pins |
| Exchangeability | Exchangeablity(dB) | | ≤0.3（Connector Randomly） | |
| Tensile strength | Tensile Strength(dB) | | ≤0.3（Max 66N） | |
| Vibration | Vibration(dB) | | ≤0.3（10~55Hz） | |
| Temperature experiment | Temp Test(dB) | | ≤0.3（-40~75℃，42Cycles） | |
